DiscoGrad-style program smoothing in Warp

Loading results...

I implemented a small Warp helper module for Gaussian program smoothing and evaluated it on branch-heavy objectives. On the hard triangle intersection problem, ordinary AD and crisp finite differences report zero gradient at branch-boundary probes, while the score-function smoother and smoothed finite differences recover clear boundary-normal signal. The follow-up run uses CUDA and a batched score estimator, launching one Warp kernel over all perturbation samples. On the 2D collision tasks, crisp AD is fast but unstable because it follows one collision path; smoothed estimators are slower but provide gradients with branch-aware behavior.

1. Method

DiscoGrad smooths branchy programs by differentiating a Gaussian-smoothed objective rather than a single crisp execution path. The Warp prototype follows that idea without source-to-source transformation: users provide a scalar Warp loss function and parameter arrays, and warp.optim.smoothing estimates gradients using pathwise AD over perturbed executions, score-function Gaussian smoothing, or common-random-number finite differences. The new batched score path accepts a loss function over a leading sample dimension, so score samples run in parallel on CUDA instead of as a Python loop. The score-function estimator is still slower than a single Tape pass but it can see discontinuities that pathwise AD ignores.

import warp.optim

result = warp.optim.smoothing.estimate_score_function_batched(
    batched_loss_fn, [params], sigma=0.07, samples=128, seed=17
)
optimizer.step(result.gradients)

This is close in spirit to Suh, Pang, and Tedrake's bundled gradients: both optimize a randomized-smoothed objective by averaging information in a neighborhood of the current state. The first-order bundled-gradient variant averages local derivatives, which is most useful when each sampled branch has meaningful derivatives. The zero-order bundled-gradient variant uses sampled values; this report's score estimator is the same practical choice for hard branch indicators and discontinuous collision events where pathwise derivatives can be zero or misleading.

2. Triangle Distance and Intersection

The triangle objective uses Warp kernels for a hard inside/outside intersection indicator and a squared outside distance. For the intersection indicator, the crisp program is piecewise constant: both AD and ordinary finite differences are zero unless the finite-difference step happens to cross an edge. Smoothing turns the edge into a finite-width probability transition and recovers useful gradients near the boundary.

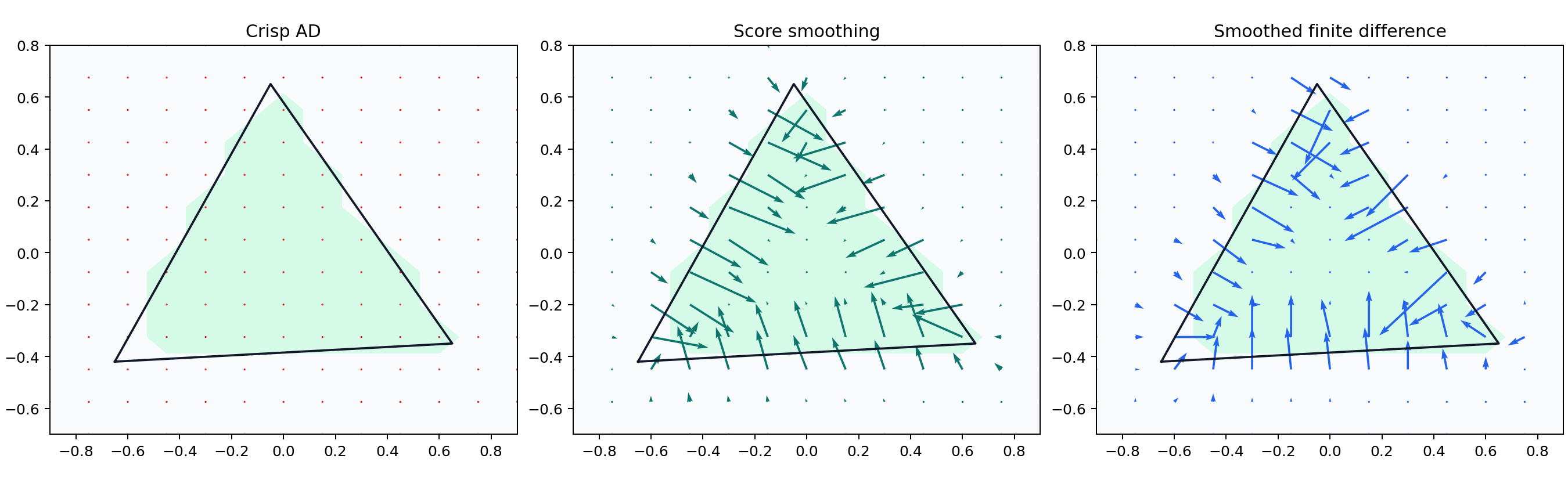

Triangle gradient fields comparing crisp AD, score smoothing, and smoothed finite differences

Green indicates the triangle interior. Arrows are gradients with respect to the queried point.

3. Billiards-Style Collision Optimization

The collision examples optimize the initial velocity of a point ball inside a rectangular table with circular bumpers. The simulated loss is final squared distance to a target plus a small speed penalty. Collisions are branchy: small velocity changes can alter which obstacle is hit and when.

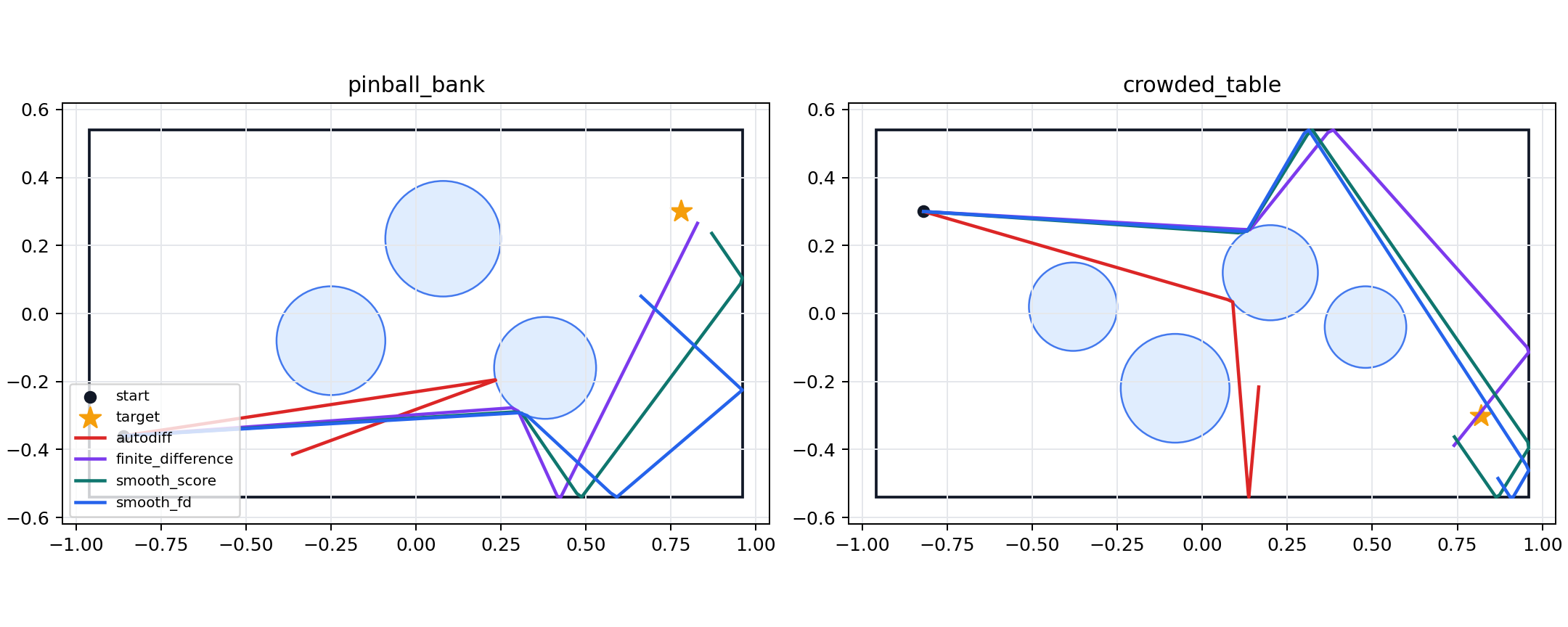

Optimized billiards trajectories for each gradient estimator

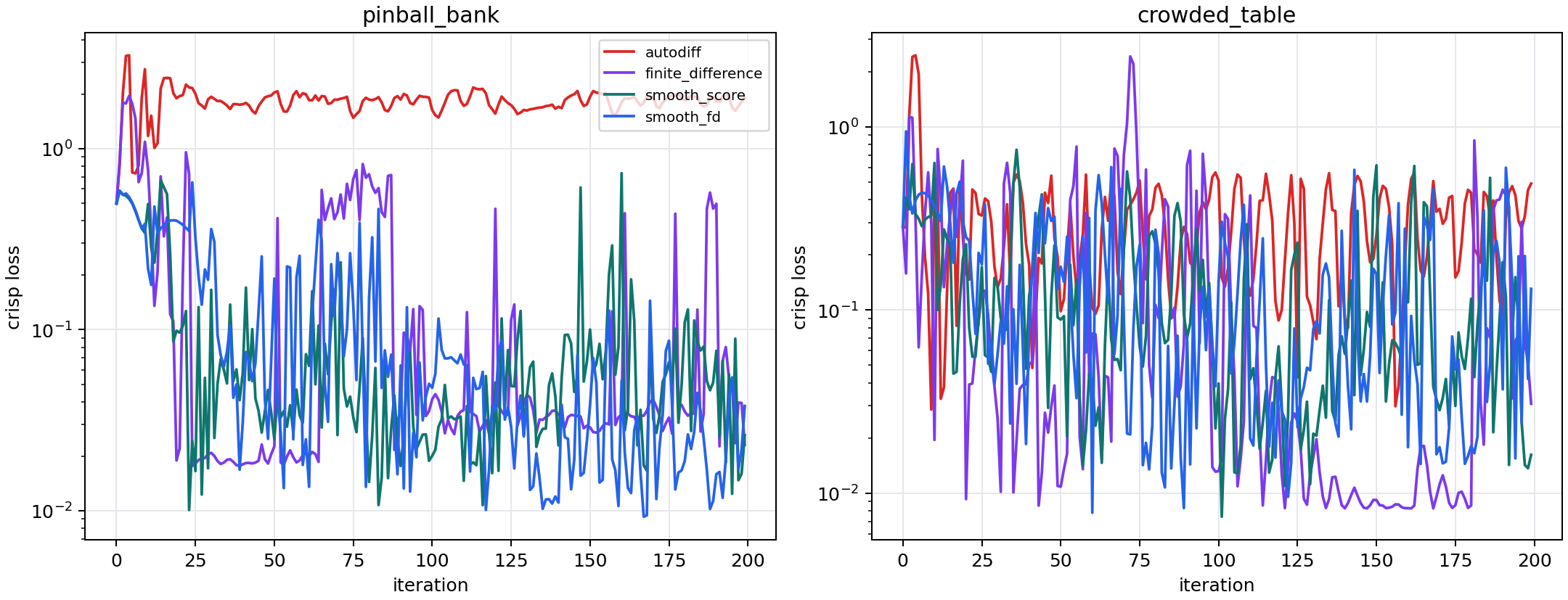

Collision optimization convergence curves

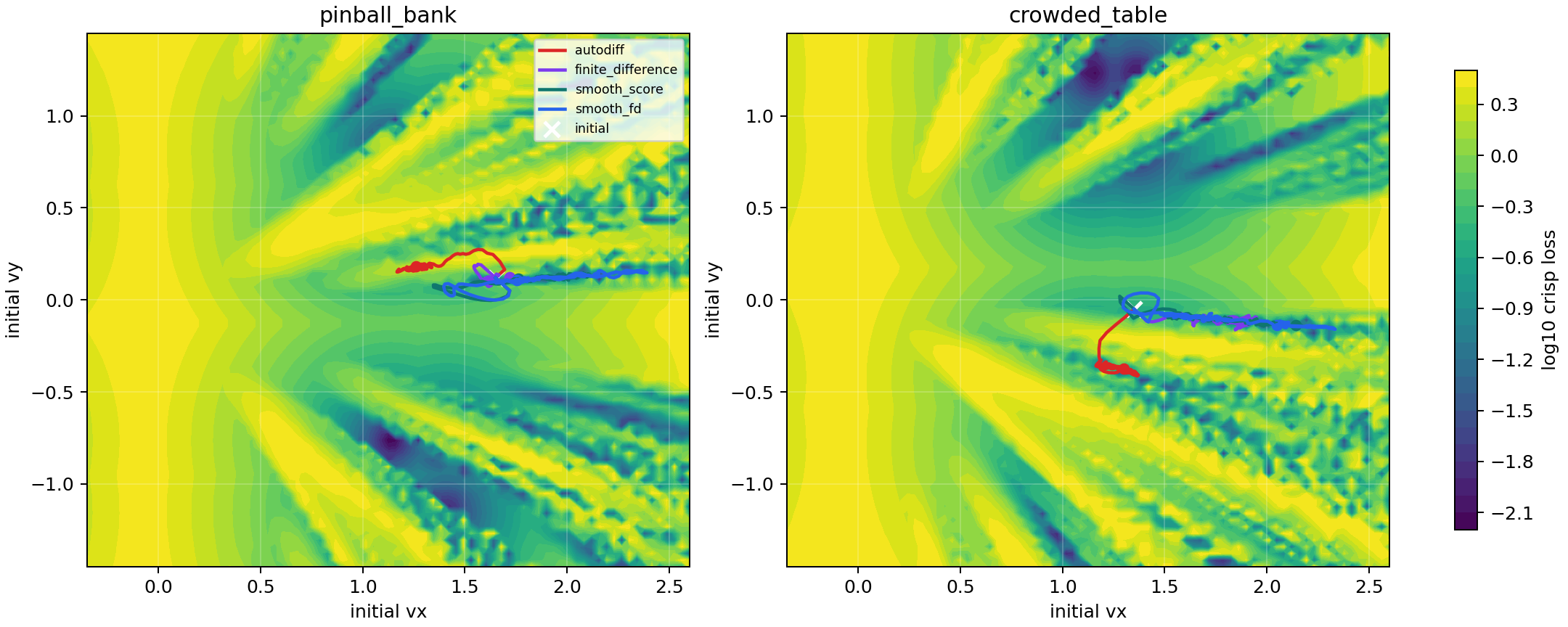

Collision loss landscapes over initial velocity with optimizer paths

Velocity-space landscapes show narrow low-loss bands and branch-induced discontinuities. Lines are optimizer paths.

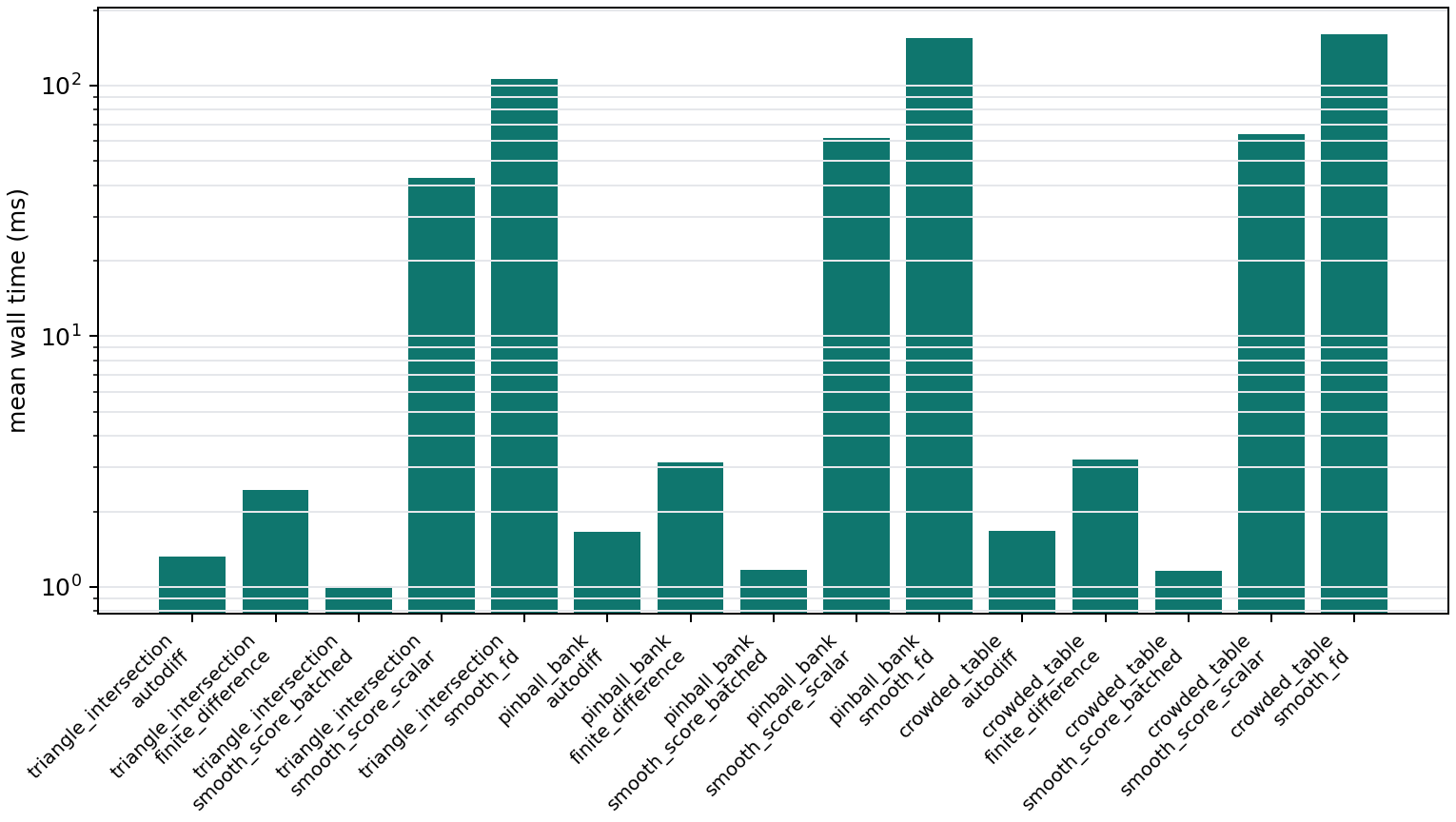

4. Sample Count and Benchmarks

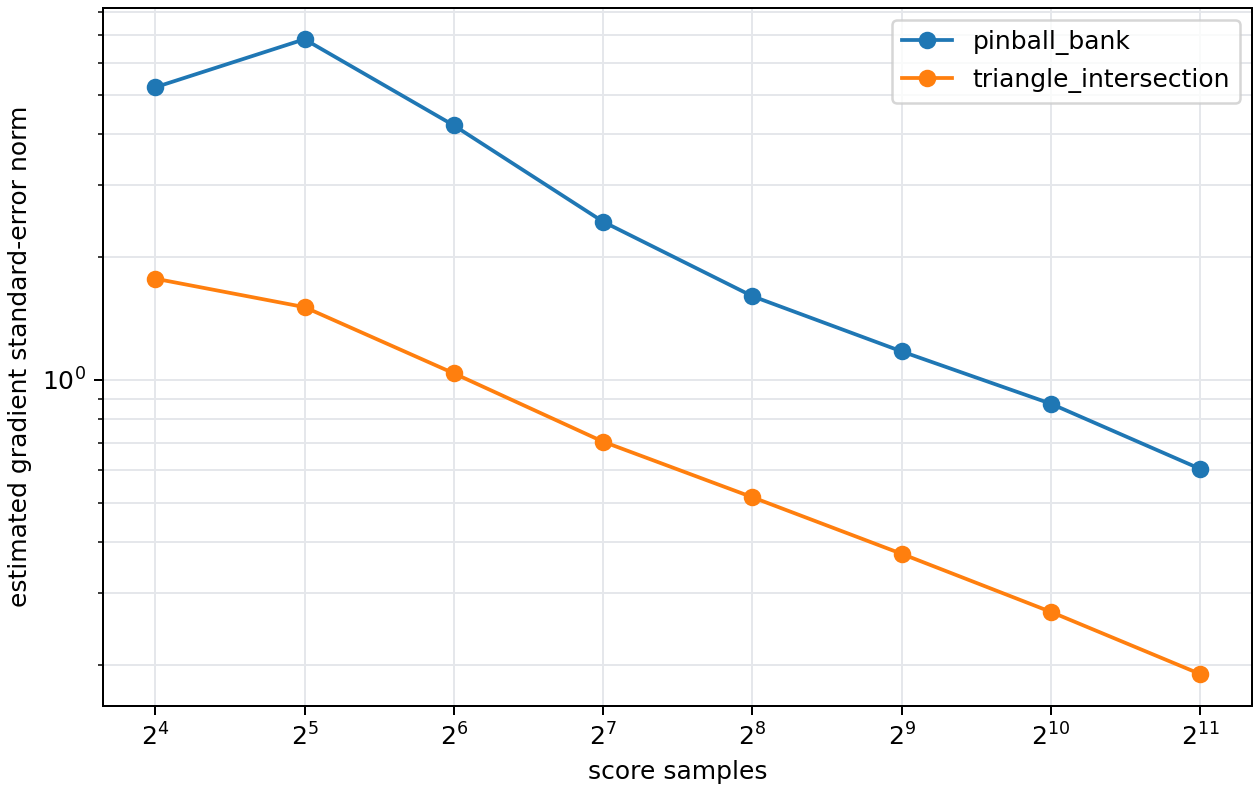

The score estimator's standard error falls as the sample count increases. With batched CUDA sampling, the wall time grows slowly across the tested range, so the main tradeoff is estimator quality rather than launch overhead. In these probes, 64-128 samples are enough for the triangle and pinball gradient direction to become stable, while the crowded collision case benefits from 512-1024+ samples.

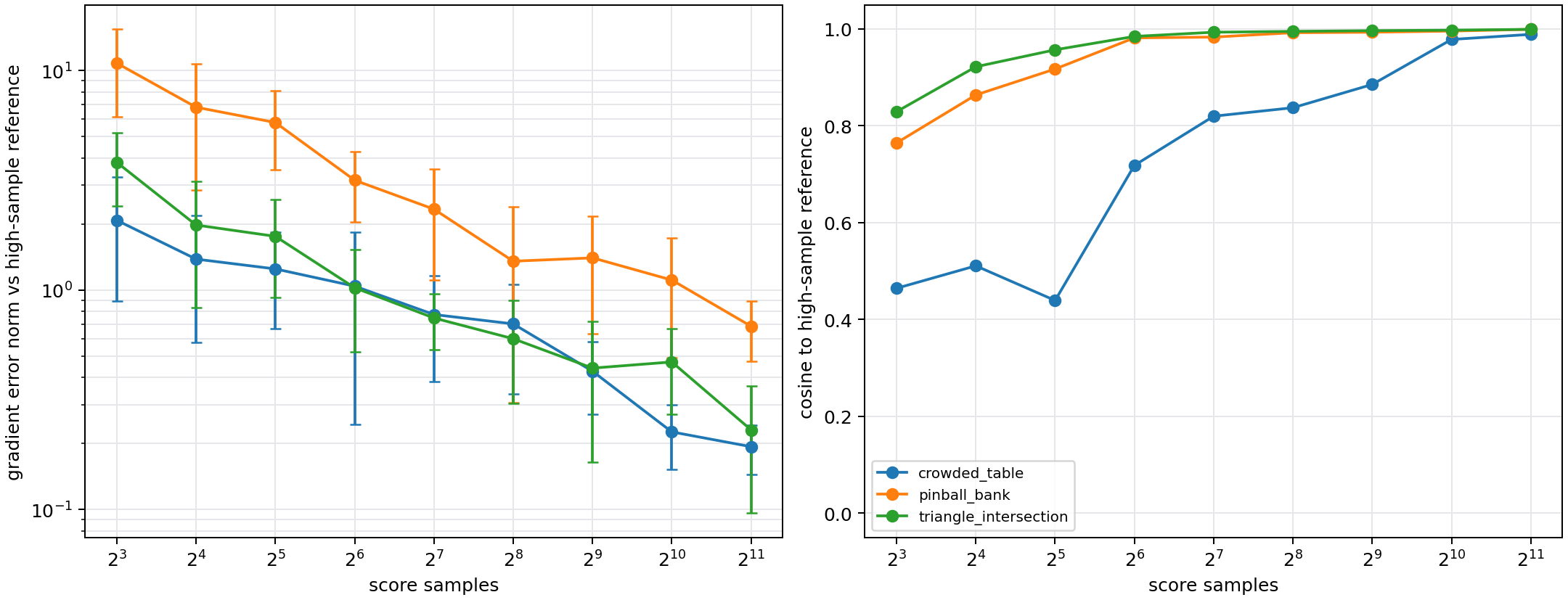

Score sample count versus gradient error and cosine similarity

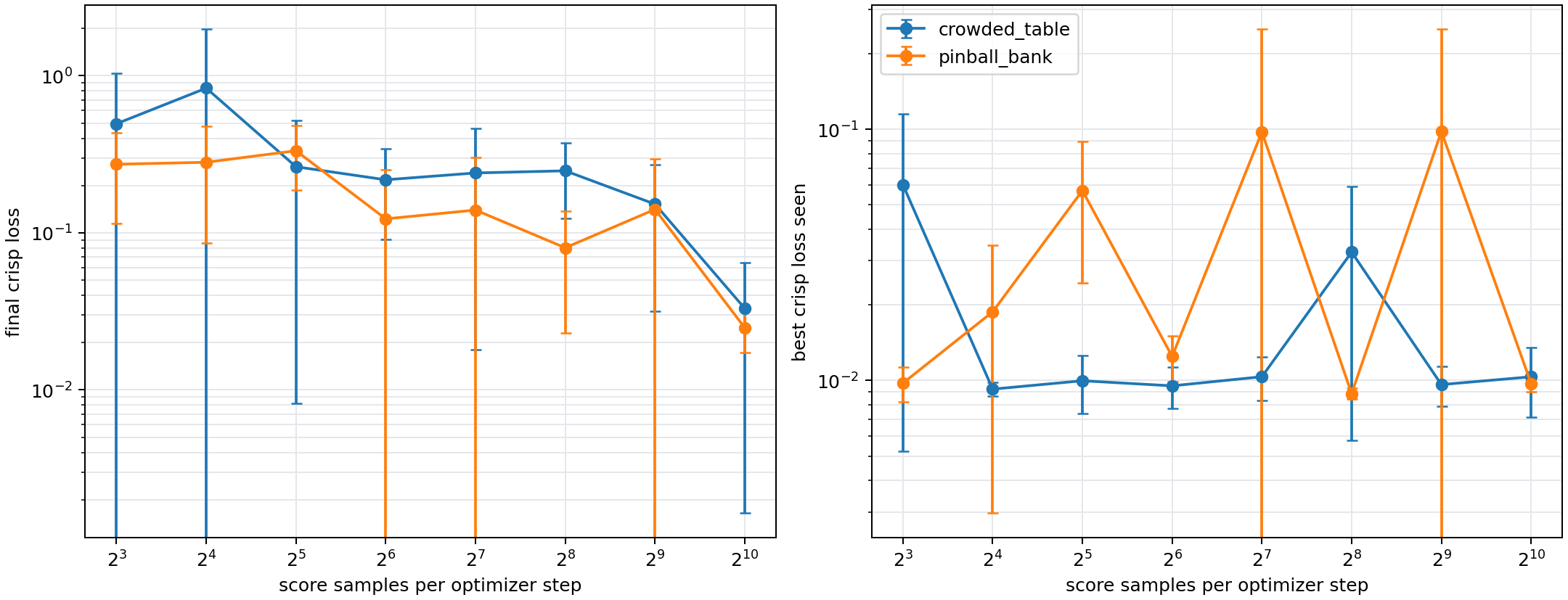

Score sample count versus collision optimization quality

5. Limitations

The CUDA build used Toolkit 12.6 with MathDx disabled. These examples do not use Warp tile MathDx operations.
The batched score estimator parallelizes perturbed loss evaluation, but gradient reduction is still performed on the host after copying per-sample losses.
This is a DiscoGrad-style smoothing utility, not a full DiscoGrad source transformer. It does not automatically instrument branch conditions inside arbitrary kernels.

Sources: Kreikemeyer and Andelfinger, Smoothing Methods for Automatic Differentiation Across Conditional Branches; DiscoGrad; Suh, Pang, and Tedrake, Bundled Gradients through Contact via Randomized Smoothing. Results generated from warp/examples/optim/example_program_smoothing.py.
