Flying Knots in Newton

Replicating the mid-air overhand "flying knot" of Suresh & Atkeson (flying-knots.github.io, arXiv:2602.21302) in Newton with SolverVBD cable joints: an xArm7 bolted to a fixed pedestal replays the paper's throw trajectory and a simulated weighted rope ties itself into an overhand knot in under a second of motion.

Generated 2026-07-03 from CUDA runs on NVIDIA L40; revised 2026-07-07: high-resolution 72-segment cable preset resolves the knot shape (9/9); 2026-07-06: the MuJoCo-coupled variant ties the knot fully dynamically (12/12). Earlier revisions: 2026-07-05 MuJoCo-coupled variant, 2026-07-03 a fixed pedestal (see Revision). Newton branch flying-knots off origin/main 31b06fe0.

Result

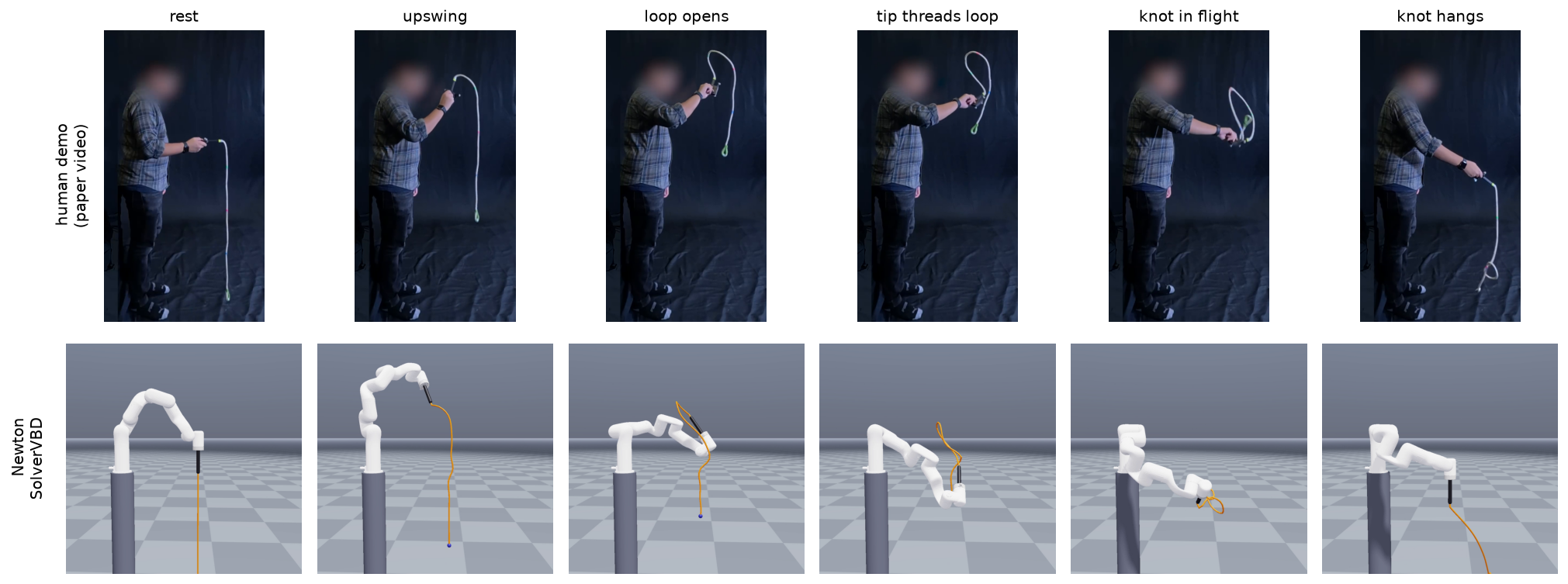

Full sequence, real time: settle → 0.56 s throw → free flight → slow lift. The rope root replays the digitized end-effector command of the paper; the xArm7 tracks the same trajectory through Newton's IK module and is animated kinematically. The knot cinches against the tip weight during the lift and remains in the hanging rope.

Throw at 4× slow motion, side view: the rope is thrown over the top, opens into a loop, and the weighted tip whips through the loop — the paper's "collision" critical point.

Close-up of the lift phase: the loose knot travels down the rope and tightens against the weighted tip.

Knot-tracking camera, 4× slow motion: the camera follows the smoothed centroid of the rope's self-contact cluster, keeping the evolving knot centered through the whole tying sequence — loop formation, the tip threading it, and the knotted rope swinging down. This clip uses the 0.53 s-throw variant of the tuned command (time scale 0.75, 60 g tip, bend 5×10⁻⁴; also 100% knot success in our trials), which leaves the finished knot higher up the rope — final knot position 0.78 along the arc length instead of 0.88, so a clear free tail hangs below it instead of the knot cinching directly against the end weight. (The static side view above loses the knot below the frame as the rope falls; here the knot cluster stays fully in view for all 120 recorded frames, max |NDC| 0.88.)

What the paper released, and what it didn't

The public code (flying_knots_public) contains the full learning pipeline (mocap capture, IK, task-level ILC, three rope models) but ships no recorded demonstrations or commands — all trial data lives under a local $FLYING_KNOT_DATA directory that was never published, and the repo has no releases. The project site hosts videos only.

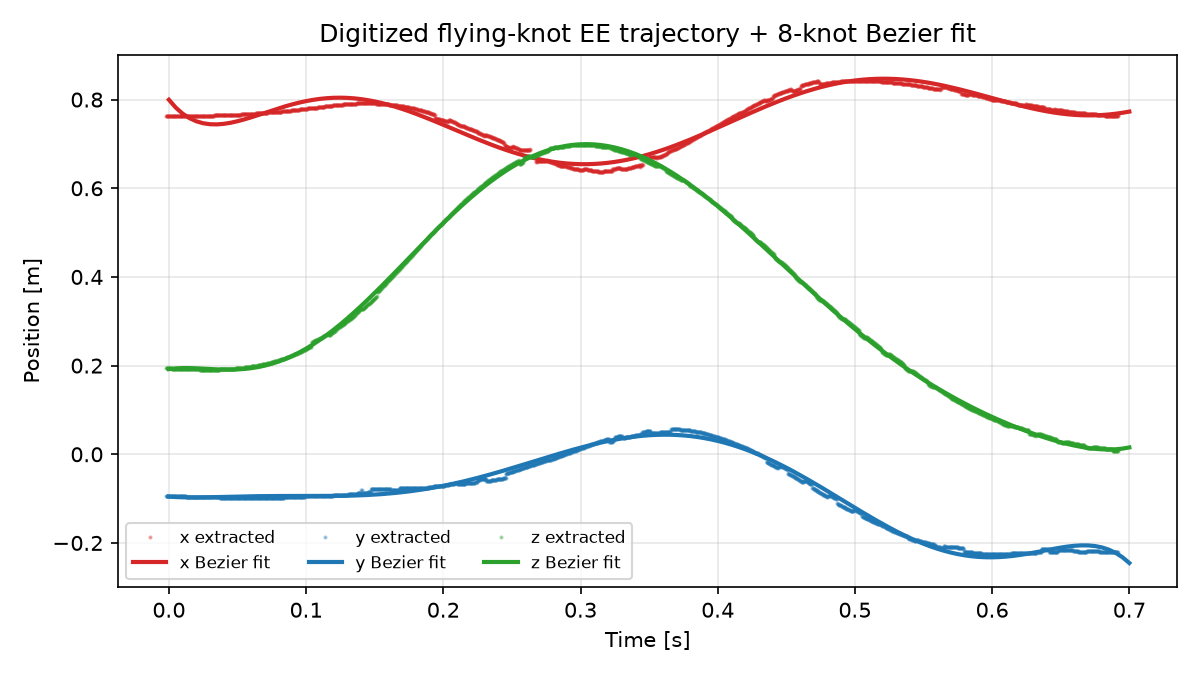

The usable quantitative record of the throw is the paper's follow-through figure: the executed end-effector x/y/z position trajectory of the overhand throw over 0.7 s. I digitized the three curves by color extraction, calibrated the axes from the tick marks, and refit the paper's own command parametrization (Appendix D): an 8-control-point Bézier per axis. Fit residual is below 3.6 cm everywhere (below 1.5 cm on z, the dominant axis). The figure plots both the demonstration and the learned command; they differ by a few centimeters, and the extraction blends them where they overlap.

Physical parameters come from the paper: rope 1 (#10 sash spot cord) is 1.1 m long, 9 mm diameter, 0.040 kg/m, with an affixed end weight; the handle is 15 cm flange-to-tip; the command space is 10-DOF (7 arm joints + 3 base translations); the initial hand height must let the rope dangle freely (z_min = 1.2 m).

Newton scene

• Rope: ModelBuilder.add_rod — 36 capsules over 1.1 m (5 mm radius), coupled by cable joints, simulated by SolverVBD (10 iterations, 32 substeps at 60 FPS). Capsule density reproduces the paper's 0.040–0.05 kg/m linear density; a sphere on the last capsule is the end weight. Rope self-collision and rope–ground contact are active (rigid_contact_history on) — the knot is a self-contact structure.
• Driving: the rope's root capsule is kinematic and follows the Bézier command, exactly mirroring the paper's rope model, where the fingertip position drives the first rope node through a distance constraint. The root orientation blends from "hanging" to "trailing the hand velocity" with twist-free quaternion transport.
• Robot: the paper's xArm7 URDF (vendored from their repo, gripper and ROS cruft stripped) bolted to a fixed pedestal (static world geometry; the rope can rest against it). Newton's newton.ik LM solver tracks two position objectives per frame — flange and handle tip — with the 7 arm joints only, which aligns the handle axis without constraining tool twist. The arm is animated kinematically (all links zero-mass; per-substep transforms interpolated from the 60 Hz IK solution), so it visualizes the commanded motion while the rope physics is driven by the same trajectory.

Revision: keeping the pedestal fixed

The first version of this report gave the arm the paper's 3-DOF translating base (their Bézier command is 10-DOF: 7 joints + 3 base translations) as a D6 joint with ±0.2 m limits, and parented the pedestal to the base link. The IK solver exploited this freely: the solved base trajectory slid 0.25 m in x and rail-to-rail 0.40 m in y and z during the throw, so the whole robot — pedestal included — visibly flew around the scene. Physically plausible for their gantry-style setup, but it read as an unrealistic floating robot.

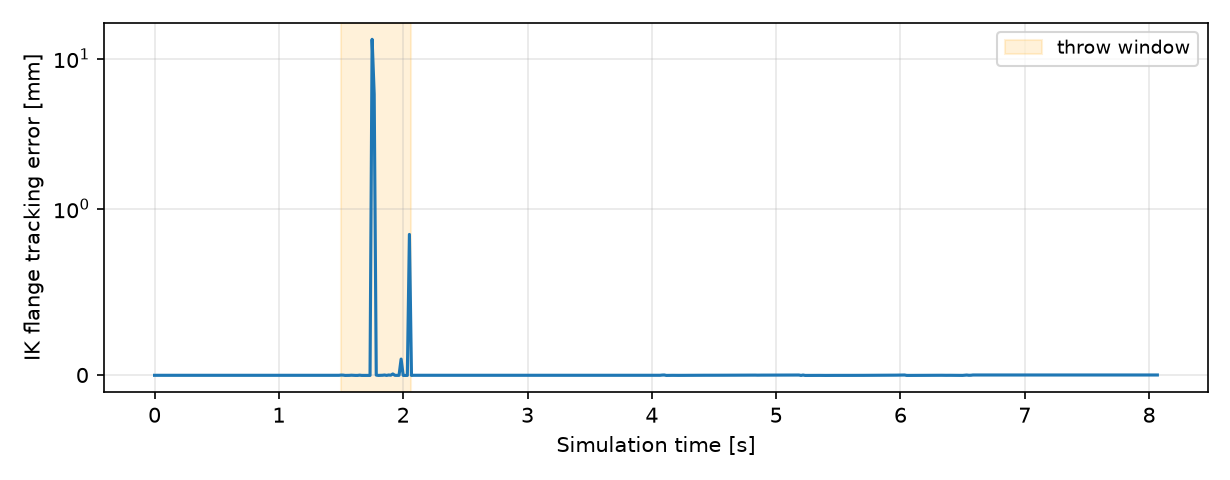

The fix removes the base joint entirely (the URDF root is welded to the world) and instead searches for a mount pose from which the fixed-base arm can reach the entire command: candidate mounts are pruned by a workspace annulus around the shoulder, then scored by solving the full 7-DOF IK schedule (scripts/flying_knot/fixed_base_search.py). The selected mount (x = 0.30, y = −0.20, flange height 1.30 m) tracks the whole trajectory with mean 0.03 mm / max 13.5 mm flange error (the movable base achieved 8.7 mm max — the fixed base costs 5 mm at one whip frame). The pedestal is now static world geometry with collision enabled, so the rope rests against it rather than passing through. Enabling that contact exposed a real failure mode — the loose knot could snag on the column and be stripped off while the rope is lifted (4/8 with-arm trials) — so the final lift now drifts 0.12 m away from the pedestal, restoring 7/8.

Tuning: replaying the demonstration is not enough

Replaying the digitized command verbatim on the paper's rope-1 parameters (0 knots) reproduces the paper's own headline observation: direct tracking of a demonstration fails, because the rope dynamics differ between the demonstrator's rope and the executing system. In the paper the gap is human→robot hardware; here it is real rope→VBD cable. Their answer is task-level ILC over the command; mine is a parameter search over command timing/amplitude and rope properties, playing the same role offline.

A broad sweep (54 runs) showed the failure mode clearly: the rope coils to a transient writhe of ±3 and the loop collapses before the weighted tip threads it, or the loose knot slides off the free end during flight. Two knobs move the collision point decisively: a slightly faster throw (time scale 0.75–0.8, i.e. 0.53–0.56 s instead of 0.7 s) and a heavier tip weight (50–70 g vs. the paper's 18 g) that carries momentum through the loop and later cinches the knot.

Success rates

Because VBD contact resolution is not bitwise deterministic across runs, single successes are meaningless near the critical manifold — the same parameters can knot in one run and miss in the next. All configurations were therefore scored by repeated trials (the paper analogously reports a 40-trial robustness evaluation). Success = final |writhe| > 2 and end-to-end/arc-length ratio < 0.95 in the hanging rope.

The success basin is sharp — neighboring configurations flip from 5/5 to 0/5 with a 10 g tip change — which matches the paper's premise that the flying knot is a precision event requiring iteration-level correction rather than robust open-loop replay. The selected default (time scale 0.8, 50 g tip, bend stiffness 2×10⁻³) achieved 17/20 standalone and 7/8 in the full fixed-base arm example.

Dynamically driven variant: MuJoCo arm + coupled VBD rope

The kinematic example's robot motion is choppy: its per-frame IK flips elbow/wrist branches freely in the 7-DOF nullspace (peak joint velocity 112 rad/s, acceleration 7,800 rad/s²), and per-frame interpolation steps the velocity at 60 Hz. example_cable_flying_knot_mujoco replaces this with a dynamically simulated arm on the experimental coupled-solver framework merged in #2848:

• C²-continuous reference: branch-continuous IK (subdivided targets, warm starts, and a custom posture objective that anchors each solve at the previous solution) tracks the handle-tip position only — constraining the flange or handle axis as well demands infeasible wrist rates near the workspace boundary. The 60 Hz solution is zero-phase filtered and interpolated with a natural cubic spline, giving smooth velocity and continuous acceleration by construction. The mount is re-searched to minimize peak joint velocity (mount_velocity_search.py: 12 rad/s instead of 33+).
• MuJoCo dynamics: SolverMuJoCo simulates the xArm7 with POSITION_VELOCITY PD drives (the spline's velocity feeds forward, removing the classic (k_d/k_e)·q̇ position-actuator lag — tracking error drops 5× to 0.07 rad), gravity compensation, and the paper's effort limits.
• Coupling: SolverCoupledProxy runs the arm (MuJoCo) and rope (VBD) as entries; the EE body is exposed to the VBD entry as a proxy, and the rope root attaches to the handle tip by a cable joint owned by the VBD entry, so rope reaction forces feed back onto the arm. The attachment holds to 2 mm through the 5 m/s whip.

MuJoCo-coupled variant with the searched throw command (--command searched): the dynamically driven arm executes the whip with smooth, physical joint motion, and the rope ties an overhand knot that locks in the hanging rope — fully dynamic end to end.

Throw at 5× slow motion, kinematic example (left) vs MuJoCo-coupled example (right): the branch-flip twitches of the raw per-frame IK vanish under the C² reference and dynamic tracking.

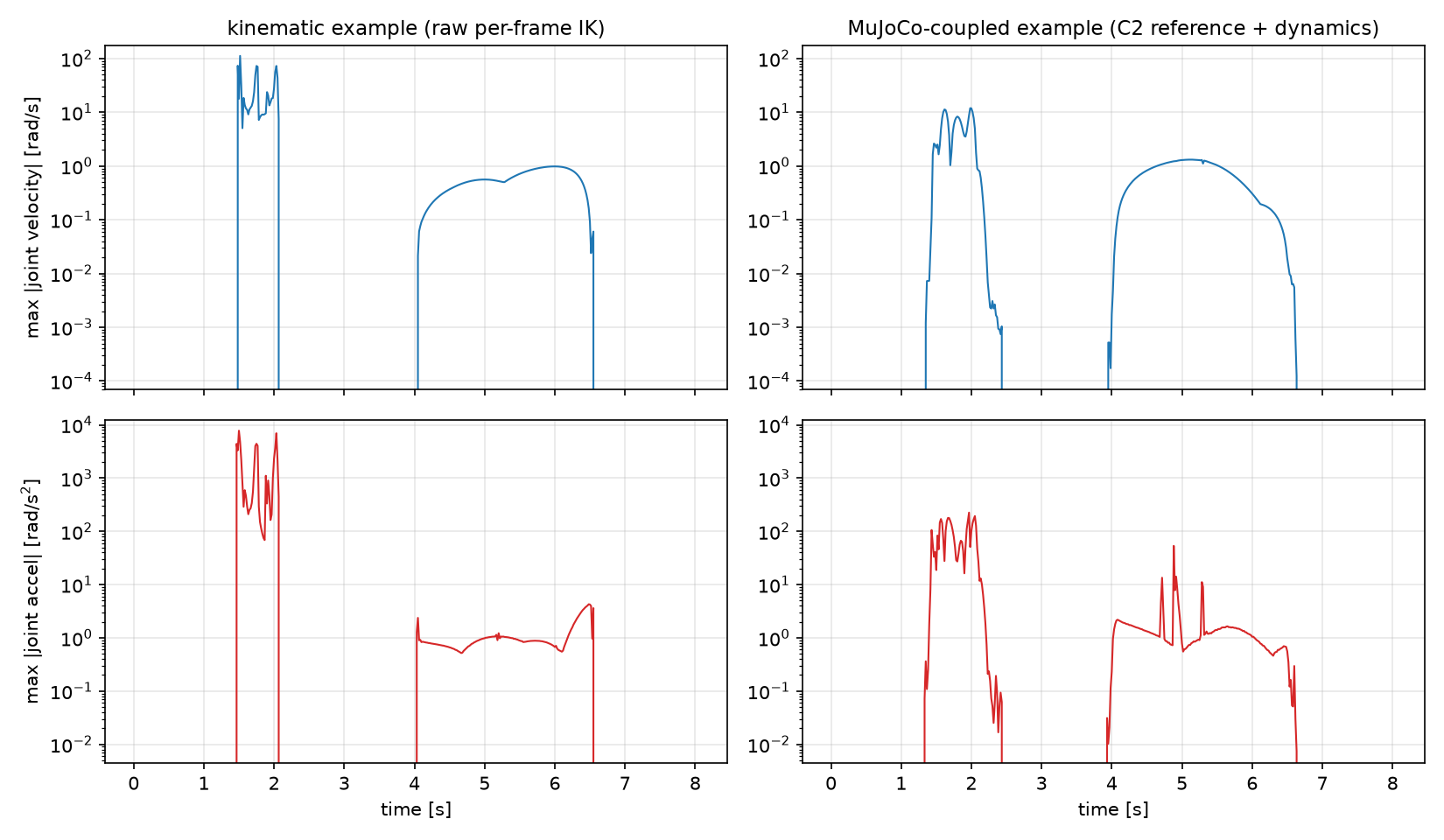

Max per-joint velocity/acceleration (log scale): peak joint velocity drops 112→11 rad/s, acceleration 7,780→181 rad/s², jerk by 123×.

Getting the knot back: command search against the coupled dynamics

The tuned kinematic command does not knot under the coupled dynamics, and the reason is instructive: the kinematic example's coil formation secretly relied on prescribing the rope-root orientation along the trailing-velocity axis — effectively an unbounded wrist that snaps the root axis at up to 4,800 °/s. A physical free-pivot attachment cannot transmit that input, and the xArm7's wrist cannot reproduce it kinematically (adding an orientation objective drives IK to 100+ rad/s branch flips). The throw command itself had to be re-derived for the coupled dynamics.

A cross-entropy search over Bézier control-point deltas on all seven free control points plus throw timing and tip mass (command_search.py, roughly 300 rollouts total — the offline analogue of the paper's task-level ILC) found it. Two objective terms made the difference over a first, failed search that only rewarded transient coiling: a threading-persistence term (mean |writhe| held in the second after the throw — a coil that collapses scores low, so the optimizer is pushed toward capture, not just coiling) and a dynamic-feasibility penalty on the arm's joint tracking error, which keeps candidate commands executable by the torque-limited MuJoCo arm. The winning command (bundled as --command searched) throws in 0.55 s with a 40 g tip — much closer to the paper's 18 g than the kinematic champion's 50 g — and tracks with 0.058 rad peak joint error.

One sensitivity worth recording: the command is tuned to its own C² reference, and re-solving the IK at a finer target subdivision shifts the reference by millimeters — enough to fall off the knot manifold. The IK discretization is therefore pinned alongside the command in the searched preset: the reference trajectory is the command. This mirrors the paper's central observation that flying-knot commands are precision events; their answer is per-system ILC, ours is a per-system offline search with the same role.

Higher-resolution cable: resolving the knot shape

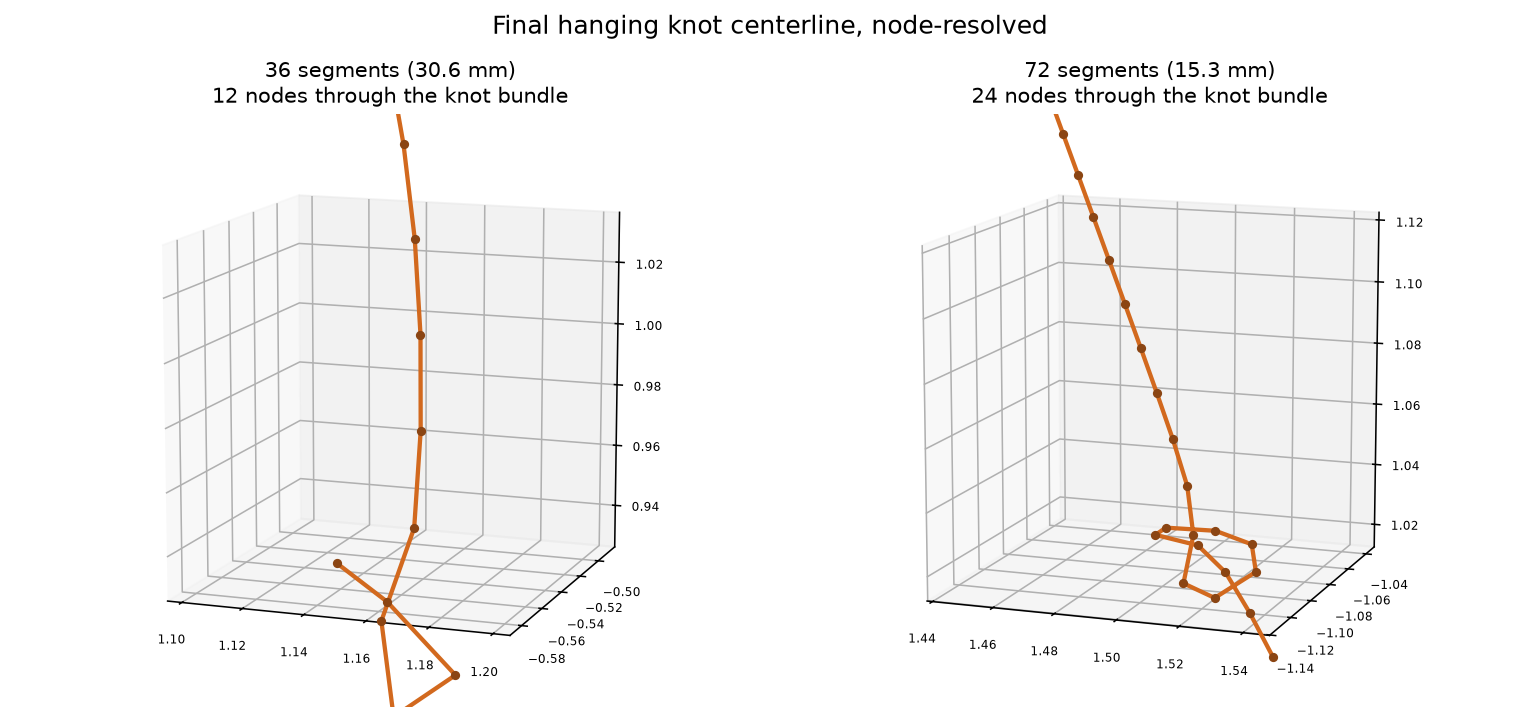

The 36-segment rope ties reliably but renders the knot bundle as a dozen angular nodes. A high-resolution preset (--command searched-hires) doubles the discretization to 72 segments (15.3 mm at 5 mm radius). Three things were required:

• Resolution-aware material scaling. Cable-joint stiffness and damping are per-joint quantities: for the same physical rope (fixed EA, EI), they scale inversely with segment length. --rope-segments now rescales them from the 36-segment reference automatically, so resolution changes discretization, not the rope.
• Re-deriving the command. Even with correct scaling, the 36-segment command sits on a razor-thin manifold: it still knots at 38 segments and misses at 40. A homotopy search (36→48→60→72, each stage warm-started) recovered knotting commands, but the first 72-segment winners were environment-marginal — they reproduced deterministically inside the search harness and missed deterministically from a fresh shell (the two contexts differ in free GPU memory, enough to change low-level kernel behavior at floating-point level). The search now scores basin membership — knotting candidates are re-evaluated at small parameter perturbations and only basin interiors score fully — and verifies every new incumbent with an independent re-run before accepting it.
• A finer solve at the cinch. The decisive fix was physical: at 15 mm segments the knot bundle involves twice as many self-contacts, and 10 VBD iterations at 32 substeps under-resolve the capture, leaving the outcome at the mercy of floating-point noise. At 48 substeps and 16 VBD iterations the same command knots everywhere: 9/9 across fresh shells and concurrent GPU load, writhe +3.2–3.4. The preset pins the solver settings, IK discretization, cinch yank, and command together.

In-flight cable PRs

This branch runs on plain origin/main (31b06fe0). JC Chang's (jumyungc) merged VBD-cable work is already in that baseline and this example depends on it (capsule COM origin #2670, absolute VBD damping #2877, rigid-contact energy fix #3147). His open PRs were evaluated but not required: #3122 (split cable stretch/shear + bend/twist constraints) was additionally merged into a scratch branch and re-scored — it shifts the cable dynamics enough to move the tuned command off the knotting manifold (the loop still forms, max writhe 3.2, but the tip no longer threads it), and a small retune restores full success; #3180 (separate rest/initial poses) is unnecessary because the rope starts at its rest shape; and #3316 (masked rigid resets) targets resets, which this example does not use.

Verifying the knot

Success is scored topologically on the rope centerline, not visually:

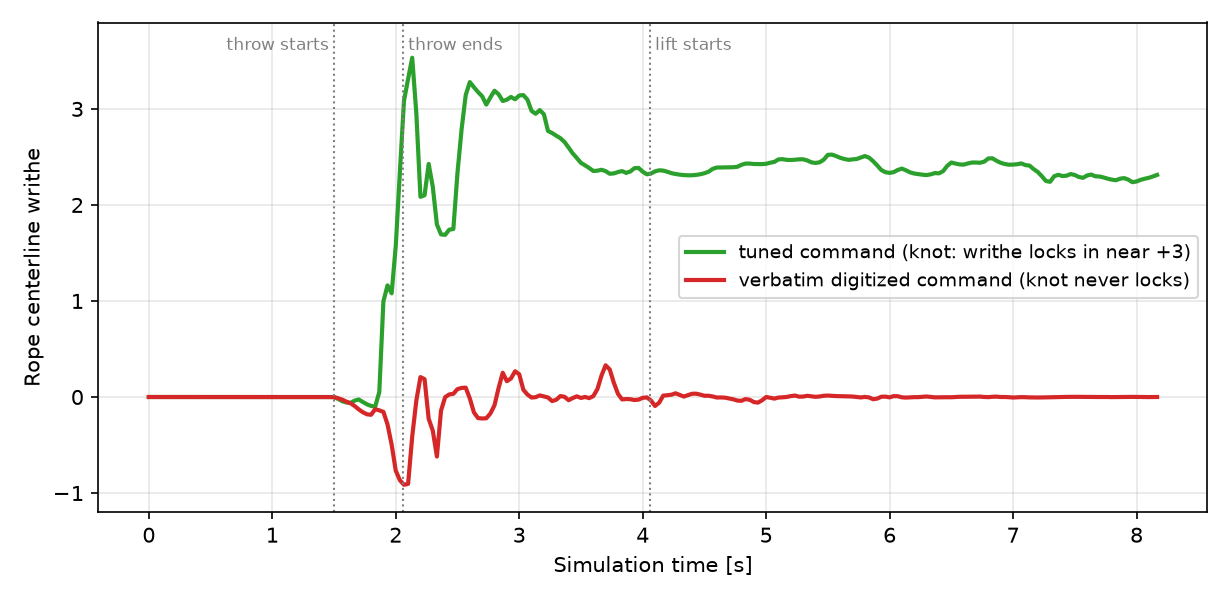

• Writhe via the discrete Gauss integral (Klenin & Langowski segment-pair solid angles). A tightened open overhand knot scores |Wr| ≈ 2.5–3.4; unknotted slack rope stays near 0. Unit-tested against closed/open trefoils, circles, and slack curves.
• Length deficit: an overhand knot consumes rope, so the hanging end-to-end distance drops to ≈0.80–0.85 of arc length after the lift tightens it against the tip weight (unknotted: >0.95). This mirrors the paper's success definition — a knot that survives in the hanging rope.
• Crossing count of the projected centerline (≥3 for a trefoil projection), reported for confirmation.

The example's test_final() asserts these criteria when run with --expect-knot.

Deviations from the paper

• Command source: digitized from a published figure (position only, solid/dashed curves blended), not the released mocap. Handle orientation is reconstructed heuristically since the paper's rope model is position-driven anyway.
• Command tuning: 20% faster throw and 50 g tip weight (paper: 18 g for rope 1). The VBD cable at this discretization needs a more energetic throw than the real cotton cord; the paper compensates per-rope with ILC and per-rope end weights up to 80 g.
• Arm is kinematic and arm–rope collision is disabled; the rope interacts with itself, the ground, and the pedestal column, as in the paper's particle model. The loop passes close to the wrist during the throw. The final lift drifts 0.12 m away from the pedestal so the tightening knot cannot snag on the column.
• Rope discretization: 36 capsules (3 cm segments) versus 11 mocap markers in their model; the tight knot bundle spans ~8 segments, so finer discretization would sharpen the knot geometry at higher cost.
• No learning loop: this is a tuned open-loop replay; the ILC algorithm itself was not ported.

Reproduction

The complete branch (example, digitization, sweep/recording tooling, and specs) is published at eric-heiden/newton@flying-knots; the example lives at newton/examples/cable/example_cable_flying_knot.py with the analysis scripts under scripts/flying_knot/.

git clone -b flying-knots https://github.com/eric-heiden/newton.git
# Newton branch: flying-knots (off origin/main 31b06fe0)
uv run -m newton.examples cable_flying_knot                      # interactive, knots by default
uv run -m newton.examples cable_flying_knot_mujoco --command searched --expect-knot  # fully dynamic knot
uv run -m newton.examples cable_flying_knot_mujoco --command searched-hires --expect-knot  # 72-segment knot
uv run python scripts/flying_knot/command_search.py    # re-derive the coupled-dynamics command
uv run -m newton.examples cable_flying_knot --viewer null --test --expect-knot
uv run python scripts/flying_knot/digitize_fttraj.py             # rebuild the command from the figure
uv run python scripts/flying_knot/sweep.py --grid basin --repeats 3   # success-rate sweeps
uv run python scripts/flying_knot/record_video.py out.mp4        # ViewerGL headless rendering (xvfb)
uv run python scripts/flying_knot/record_video.py knot.mp4 --camera track \
    --start 1.6 --end 3.6 --slowmo 4 --time-scale 0.75 --tip-mass 0.06 --bend-stiffness 5e-4 \
    --require-knot --verify-in-frame --max-knot-pos 0.80   # knot-tracking slow-mo, knot ends high
uv run python scripts/flying_knot/fixed_base_search.py           # base-motion diagnosis + mount search
uv run python scripts/flying_knot/verify_fixed_base.py           # probe: base/pedestal must not move


Assets: xArm7 URDF + meshes are read from a clone of flying_knots_public (override with FLYING_KNOTS_XARM_DIR); without it the example runs handle-only. Videos rendered with ViewerGL offscreen capture piped to ffmpeg.
